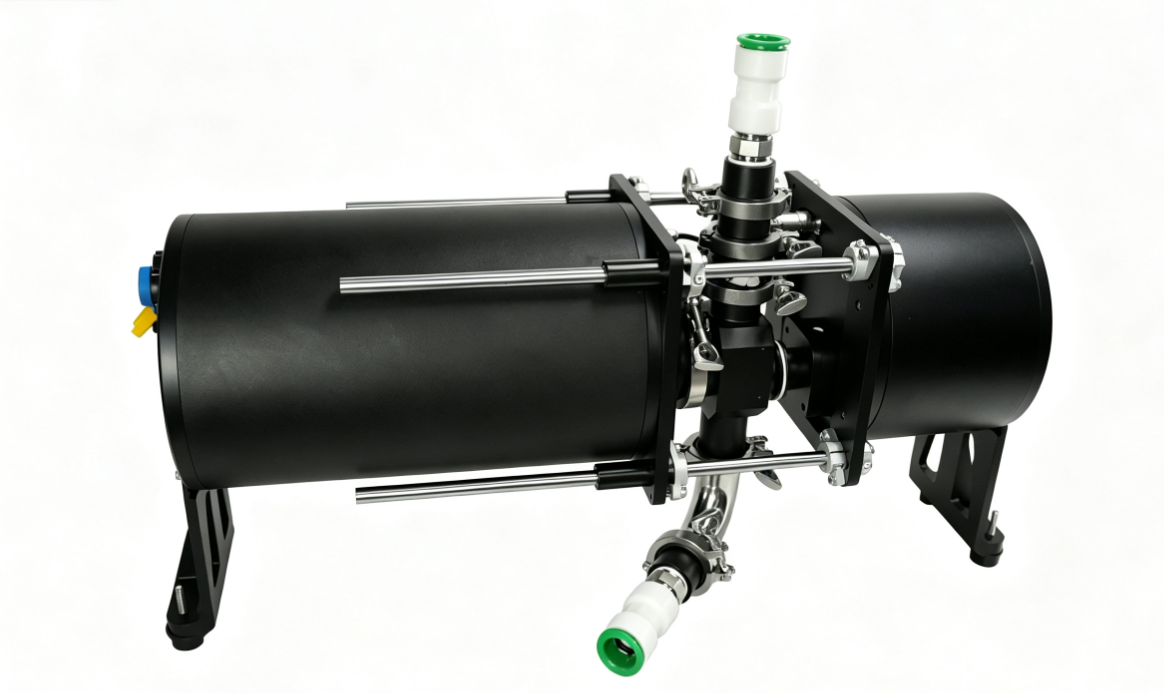

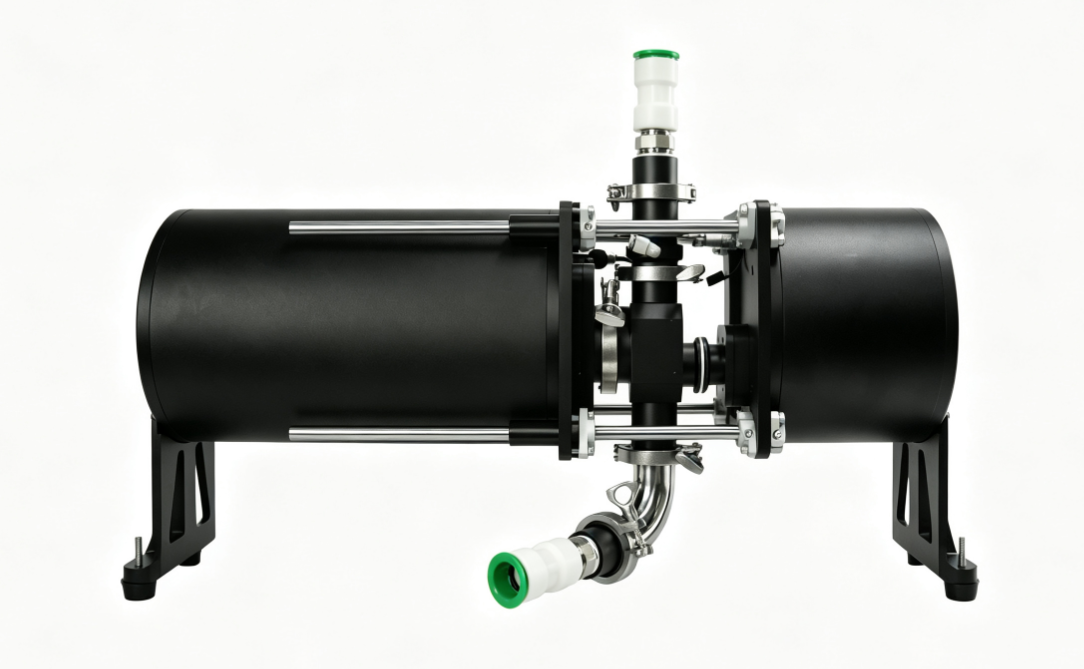

Twinkle (S-2000)

In several key areas, such as inhaled drug delivery, fuel atomization, aerosol science, rocket fuel combustion efficiency optimization, drone precision pesticide spraying, and

and energy chemical industry and nozzle design, etc. The size of spray particles and their precise control are directly related to the final quality and efficiency of the product. In view of the particle size during spraying

Due to high-speed movement, wide distribution of particle sizes and irregular shapes of the fog field, we need a spray particle size analyzer that is highly adaptable and can quickly process diffraction signals.

analysis system.

To this end, Mipu Technology has launched an ultra-high-speed real-time spray particle size analyzer. This analyzer is specially designed to meet the above challenges and aims to achieve spray particle size analysis.

Precise analysis. It has a sampling frequency of up to 10000Hz, combines a highly optimized optical path design and a high-speed signal interactive processing system, and incorporates advanced high-tech

The concentration test algorithm significantly reduces the interference of multiple diffraction on the results in the measurement of high-concentration spray particles. This allows for shading up to 90%

It can accurately measure and analyze the droplet size distribution in the range from 0.1um to 2000um, and there is no need to change the lens during the entire measurement process.

To meet wider market needs and budget considerations, the S-2000 also offers an E-type analyzer as the entry-level option in the series. Its maximum sampling rate can reach 2000Hz, but the E-type analyzer still maintains a wide particle size measurement range, from 0.1um to 2000um, providing users with an economical and practical solution.
