R-2000 is a product that perfectly combines automatic imaging technology and sample dispersion. The monochromatic surface light source combined with the high-sharpness imaging of linear CCD can not only obtain the comprehensive size and morphology information of particles: Each particle is "really visible", and the overall statistical information of the particle can be obtained, including particle size, particle shape distribution, box diagram with different parameters, scatter diagram, etc.

R-2000 provides a full range of particle size solutions from 10μm to 5cm, suitable for natural mineral particles, powder granulation, fiber, flat material pore size analysis, based on static image analysis method can be counted in just a few minutes, whether from the test accuracy, functional perfection, or ease of operation, It's much better than traditional screening and microscopic observation.

Product characteristics

• Larger dispersion surface, dispersion surface size up to 20cm*20cm, can disperse more samples

• The innovative vacuum disperser can disperse micron particles


• Linear CCD single lens technology can cover the test range of 10-50,000 μm without changing the lens


• The testing process is fully automated, reducing the impact of human factors


• Realize full sample detection, do not leak any "large particle"


• A single image can reach 25000*25000 ultra-high resolution, micrometer must appear

• Up to more than 30 particle size parameters, enabling multiple filter Settings for rapid particle classification


• All particles are automatically saved, and specific particles can be exported selectively


• A variety of statistical data forms: bar chart, curve chart, box chart, scatter chart, etc., can be used for horizontal comparison of the same type of parameters, can also be used for correlation analysis of different types of parameters


• Test samples can be 100% recycled

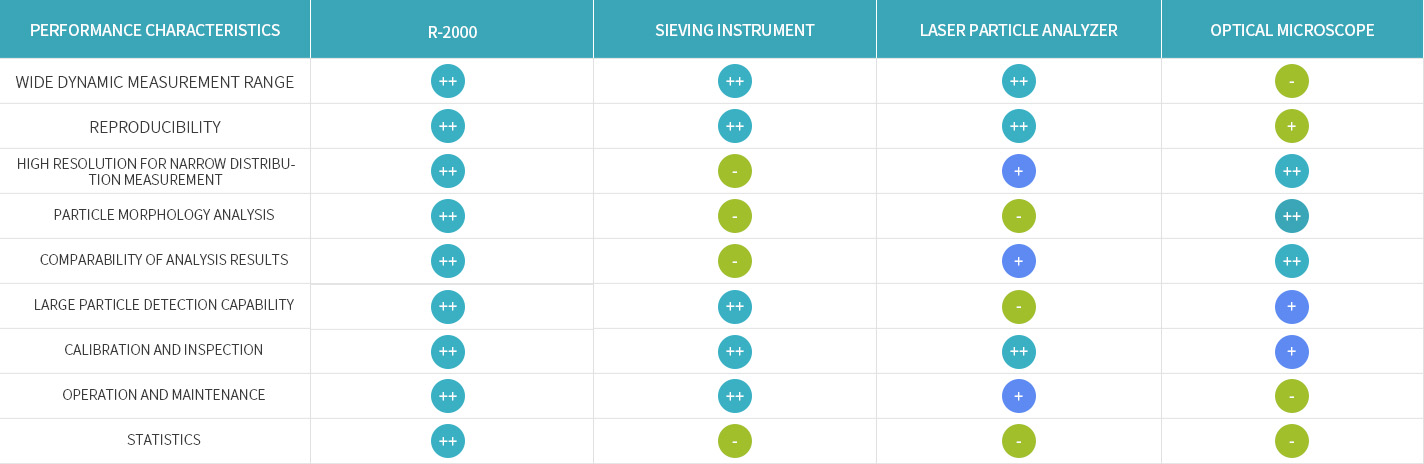

Contrast with traditional methods

Technical parameter

• Test technique: Still image analysis

• Dispersion technology: dry vacuum dispersion


• Test range: 10μm-5cm


• Implementation standard: ISO-13322-1 GB/T 21649.1-2008


• Light source: white side light source


• Imaging system: linear CCD


• Imaging resolution: 25000*25000


• Field of view size: 20cm*20cm


• Particle size parameters: circumference, area, equivalent area diameter, equivalent circumference diameter, inner diameter, Ferret diameter, Legendre diameter, minimum peripheral circle diameter, mean diameter, skeleton length, etc


• Grain shape parameters: aspect ratio, elongation, compactness, straightness, irregularity, roundness, roundness, firmness, convexity, concavity, bluntness, satellite index, average gray level, etc


• SOP Operation process: Supported


• Data format: Excel, bitmap, PDF


• Positioning accuracy: 1μm


• Sample recovery: 100% recovery


• Size and weight: (L*W*H) 900mm*450mm*297mm, 20.5kg


• Working environment: Temperature 5℃-40℃, humidity 35-80%
